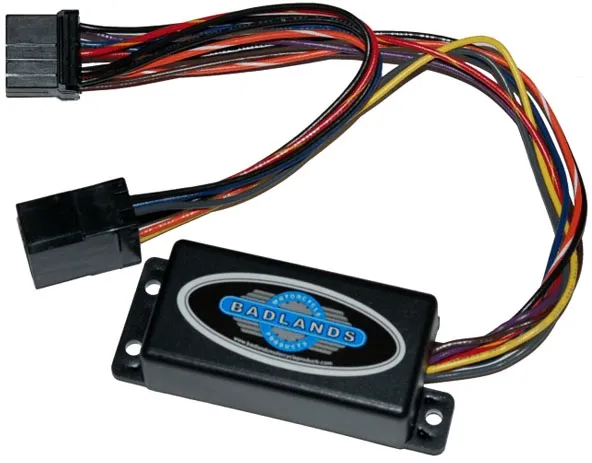

Badlands Illuminator Run-Turn-Brake Module, with Built-in Load Equalizer, Plug-In For 1996-2010 Softail (Including FXSTD), 1997-2013 FLT, 1997-2011 Dyna, 1999-2003 XL Models (ILL-01-A)
vehicle specific
$143.66
Wishlist
Seen it cheaper elsewhere?
Our Price Promise
Seen this item cheaper on another website? Let us try and match it!
We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll respond via email with a unique discount code.
×
Overview of the product
Gives running light and brake light function to turn signals and maintains turn signal function.
Load equalizer is built-in. Module will work with 2000-Up TSM and TSSM module/security systems.
Specifications +
Connector Style: OEM Style
Connector Pins: 8 Pins
Volts: 12 V
Product Name: Lighting Control Module
Type: Brake Light| Running Light| Turn Signal
Model: Illuminator
Units: Each
Part numbers +
- 513391
- 604900
- ILL-01-A
- 7808-1028
Fitment +
HARLEY DAVIDSON
- Dyna Convertible - FXDS-CON: 1997-2000
- Dyna Fat Bob - FXDF: 2008-2011
- Dyna Fat Bob CVO/SE - FXDFSE: 2009
- Dyna Fat Bob CVO/SE - FXDFSE2: 2010
- Dyna Low Rider (EFI) - FXDLI: 2004-2006
- Dyna Low Rider - FXDL: 1997-2005, 2007-2011
- Dyna Street Bob (EFI) - FXDBI: 2006
- Dyna Street Bob - FXDB: 2007-2011
- Dyna Super Glide (EFI) - FXDI: 2004-2006
- Dyna Super Glide - FXD: 1997-2010
- Dyna Super Glide 35th Anniversary - FXDI35: 2006
- Dyna Super Glide Custom (EFI) - FXDCI: 2005-2006
- Dyna Super Glide Custom - FXDC: 2005, 2007-2011
- Dyna Super Glide CVO/SE - FXDSE: 2007
- Dyna Super Glide CVO/SE - FXDSE2: 2008
- Dyna Super Glide Sport (EFI - FXDXI: 2004-2005
- Dyna Super Glide Sport - FXDX: 1999-2005
- Dyna Super Glide T-Sport - FXDXT: 2001-2003
- Dyna Wide Glide (EFI) - FXDWGI: 2004-2006
- Dyna Wide Glide - FXDWG: 1997-2005, 2007-2008, 2010-2011
- Dyna Wide Glide - FXDWG2: 2001
- Dyna Wide Glide - FXDWG3: 2002
- Electra Glide Classic (EFI) - FLHTCI: 1996-2006
- Electra Glide Classic - FLHTC: 1997-2005, 2007-2013
- Electra Glide CVO/SE - FLHTCSE: 2004
- Electra Glide CVO/SE - FLHTCSE2: 2005
- Electra Glide Standard - FLHT: 1997-2010
- Electra Glide Standard - FLHTI: 2003-2006
- Electra Glide Ultra Classic (EFI) - FLHTCUI: 1997-2006
- Electra Glide Ultra Classic - FLHTCU: 1997, 2007-2013
- Electra Glide Ultra Classic CVO/SE - FLHTCUSE: 2006
- Electra Glide Ultra Classic CVO/SE - FLHTCUSE2: 2007
- Electra Glide Ultra Classic CVO/SE - FLHTCUSE3: 2008
- Electra Glide Ultra Classic CVO/SE - FLHTCUSE4: 2009
- Electra Glide Ultra Classic CVO/SE - FLHTCUSE5: 2010
- Electra Glide Ultra Classic CVO/SE - FLHTCUSE6: 2011
- Electra Glide Ultra Classic CVO/SE - FLHTCUSE7: 2012
- Electra Glide Ultra Classic CVO/SE - FLHTCUSE8: 2013
- Electra Glide Ultra Classic Low - FLHTCUL: 2015-2016
- Electra Glide Ultra Limited - FLHTK: 2010-2013
- Electra Glide Ultra Limited CVO/SE - FLHTKSE: 2014
- Electra Glide Ultra Limited Low - FLHTKL: 2015-2019
- Road Glide (EFI) - FLTRI: 1998-2006
- Road Glide - FLTR: 1999-2003, 2007-2009
- Road Glide - FLTRX: 2010-2013
- Road Glide 3 - FLTRT: 1998-2003, 2007-2009
- Road Glide CVO/SE (EFI) - FLTRSEI: 2000
- Road Glide CVO/SE (EFI) - FLTRSEI2: 2001
- Road Glide CVO/SE - FLTRSE3: 2009
- Road Glide CVO/SE - FLTRXSE: 2012
- Road Glide CVO/SE - FLTRXSE2: 2013
- Road King (EFI) - FLHRI: 1996-1997, 1999-2006
- Road King - FLHR: 1997-2013
- Road King Classic (EFI) - FLHRCI: 1998-2006
- Road King Classic - FLHRC: 2004, 2007-2013
- Road King Custom - FLHRS: 2004-2007
- Road King Custom - FLHRSI: 2004-2006
- Road King CVO/SE (EFI) - FLHRSEI: 2002
- Road King CVO/SE (EFI) - FLHRSEI2: 2003
- Road King CVO/SE - FLHRSE3: 2007
- Road King CVO/SE - FLHRSE4: 2008
- Road King CVO/SE - FLHRSE5: 2013
- Road King CVO/SE - FLHRSE6: 2014
- Softail - FXST: 1999-2010
- Softail Bad Boy - FXSTSB: 1996-1997
- Softail Convertible CVO/SE - FLSTSE: 2010
- Softail Cross Bones - FLSTSB: 2008-2011
- Softail Custom - FXSTC: 1996-1999, 2007-2010
- Softail Deluxe (EFI) - FLSTNI: 2005-2006
- Softail Deluxe - FLSTN: 1996, 2005-2010
- Softail Deuce (EFI) - FXSTDI: 2001-2006
- Softail Deuce - FXSTD: 2000-2007
- Softail Deuce CVO/SE - FXSTDSE: 2003
- Softail Deuce CVO/SE - FXSTDSE2: 2004
- Softail Fat Boy (EFI) - FLSTFI: 2001-2006
- Softail Fat Boy - FLSTF: 1996-2010
- Softail Fat Boy CVO/SE - FLSTFSE: 2005
- Softail Fat Boy CVO/SE - FLSTFSE2: 2006
- Softail Fat Boy Lo - FLSTFB: 2010
- Softail Heritage (EFI) - FLSTI: 2006
- Softail Heritage - FLST: 2006
- Softail Heritage Classic (EFI) - FLSTCI: 2001-2006
- Softail Heritage Classic - FLSTC: 1996-2010
- Softail Heritage Springer (EFI) - FLSTSI: 2001-2003
- Softail Heritage Springer - FLSTS: 1997-2003, 2006, 2008-2010
- Softail Heritage Springer Classic (EFI) - FLSTSCI: 2005-2006
- Softail Heritage Springer Classic - FLSTSC: 2005-2007
- Softail Night Train (EFI) - FXSTBI: 2001-2006
- Softail Night Train - FXSTB: 1998-2009
- Softail Rocker - FXCW: 2008-2009
- Softail Rocker C - FXCWC: 2008-2010
- Softail Springer (EFI) - FXSTSI: 2001-2006
- Softail Springer - FXSTS: 1996-2006
- Softail Springer CVO/SE - FXSTSSE: 2007
- Softail Springer CVO/SE - FXSTSSE2: 2008
- Softail Springer CVO/SE - FXSTSSE3: 2009
- Softail Standard (EFI) - FXSTI: 2001-2006
- Sportster - XL 883: 1996-2003
- Sportster - XLH: 1993-2003
- Sportster Custom - XL 1200 C: 1996-2003
- Sportster Custom - XL 883 C: 1998-2003
- Sportster Roadster - XL 883 R: 2002-2003
- Sportster Sport - XL 1200 S: 1996-2003
- Street Glide (EFI) - FLHXI: 2006
- Street Glide - FLHX: 2006-2013
- Street Glide CVO/SE - FLHXSE: 2010
