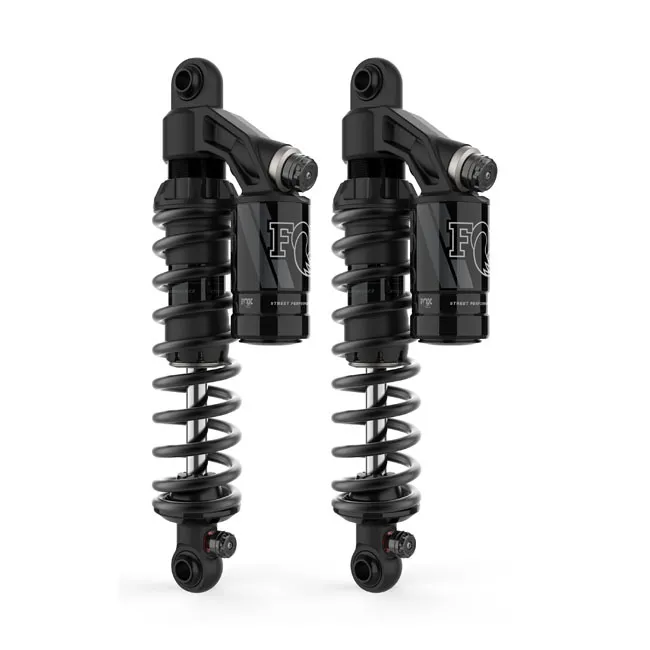

Fox Factory Raised RC1 Piggyback 13.5 Inch Shocks In Black For Harley Davidson 1998-2021 Sportster Models (897-27-017)

  • Fox Factory Raised RC1 Piggyback 13.5 Inch Shocks In Black For Harley Davidson 1998-2021 Sportster Models (897-27-017)
$1,503.37
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

EU stock Estimated shipping date between 2 Apr and 5 Apr.

Usually ships in 2-5 business days

All orders are shipped out of our UK premises. Estimated shipping date between 2 Apr and 5 Apr.

×

Instructions

The FOX RC-1 V-twin rear shocks are designed to maintain damping control throughout your ride.

The internal floating piston is housed in an external reservoir to separate the shock oil from the nitrogen gas so they can never mix like stock shocks.

The piggy back reservoir also has adjustments affecting the compression and rebound so you have all the controls you need to dial in the perfect ride

Need to fine tune? Fox's 24-position compression adjustment on the reservoir allows you to fine tune for the softest ride without bottoming out while the rebound control with 12 distinct clicks can  balance out your spring preload keeping the rear wheel firmly planted no matter how much or how little preload you have on your springs.

If that wasn’t enough, our vehicle-specific damping and linear spring rates give you the best in comfort and control for all-day adventures.

Features:

  • Model-specific optimized ride tune
  • 24-position adjustable compression
  • 12-position adjustable rebound
  • Spring preload setting guide marks
  • Aluminum piggyback reservoir
  • Gas-charged mono-tube with internal floating piston (IFP)
  • 1.5-inch 6061-T6 aluminum type III hard anodized body
  • Fully rebuildable and revalvable
  • Advanced high-flow, deflective disc velocity-sensitive damping
  • 5/8-inch low friction, super-finished hard chrome shaft
  • Matte black spring and black anodized preload ring

Adjustments: Spring preload

Wide-range: compression

Wide-range: rebound

Extended: 13.540

Compressed: 9.550

Travel: 3.990

Top Mount: Eyelet

Bottom Mount: Eyelet

Reservoir: Piggyback

Ride Height: Raised

Spring Weight: Standard: Recommended for up to 240lbs total ride load

Fitment +

    HARLEY DAVIDSON
  • Sportster Custom - XL 1200 C: 1998-2020
  • Roadster - XL 1200 CX: 2016-2020
  • Sportster Low - XL 1200 L: 2006-2011
  • Nightster - XL 1200 N: 2007-2012
  • Sportster 1200 Iron - XL 1200 NS: 2018-2021
  • Sportster Roadster - XL 1200 R: 2004-2008
  • Sportster Sport - XL 1200 S: 1998-2003
  • Sportster Super Low - XL 1200 T: 2014-2020
  • Sportster Seventy-Two - XL 1200 V: 2012-2016
  • Sportster Forty-Eight - XL 1200 X: 2010-2022
  • Sportster Forty-Eight Special - XL 1200 XS: 2018-2020
  • Sportster - XL 883: 1998-2009
  • Sportster Custom - XL 883 C: 1998-2010
  • Sportster SuperLow - XL 883 L: 2005-2020
  • Sportster Iron - XL 883 N: 2009-2022
  • Sportster Roadster - XL 883 R: 2002-2015
  • Sportster 50th Anniversary - XL50: 2007
  • Sportster - XLH: 1998-2003
