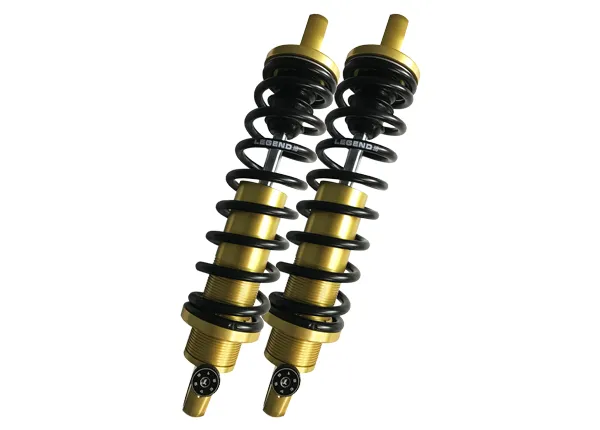

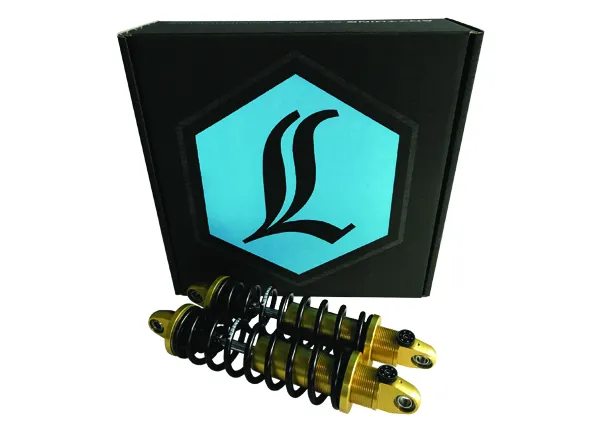

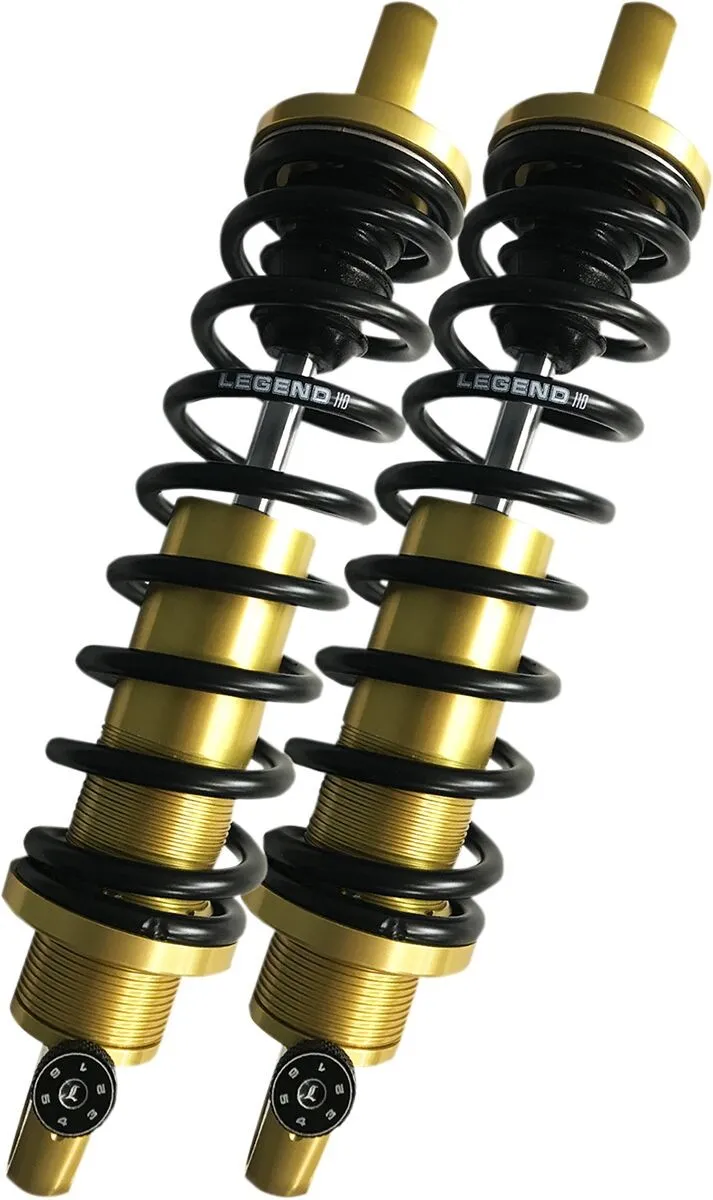

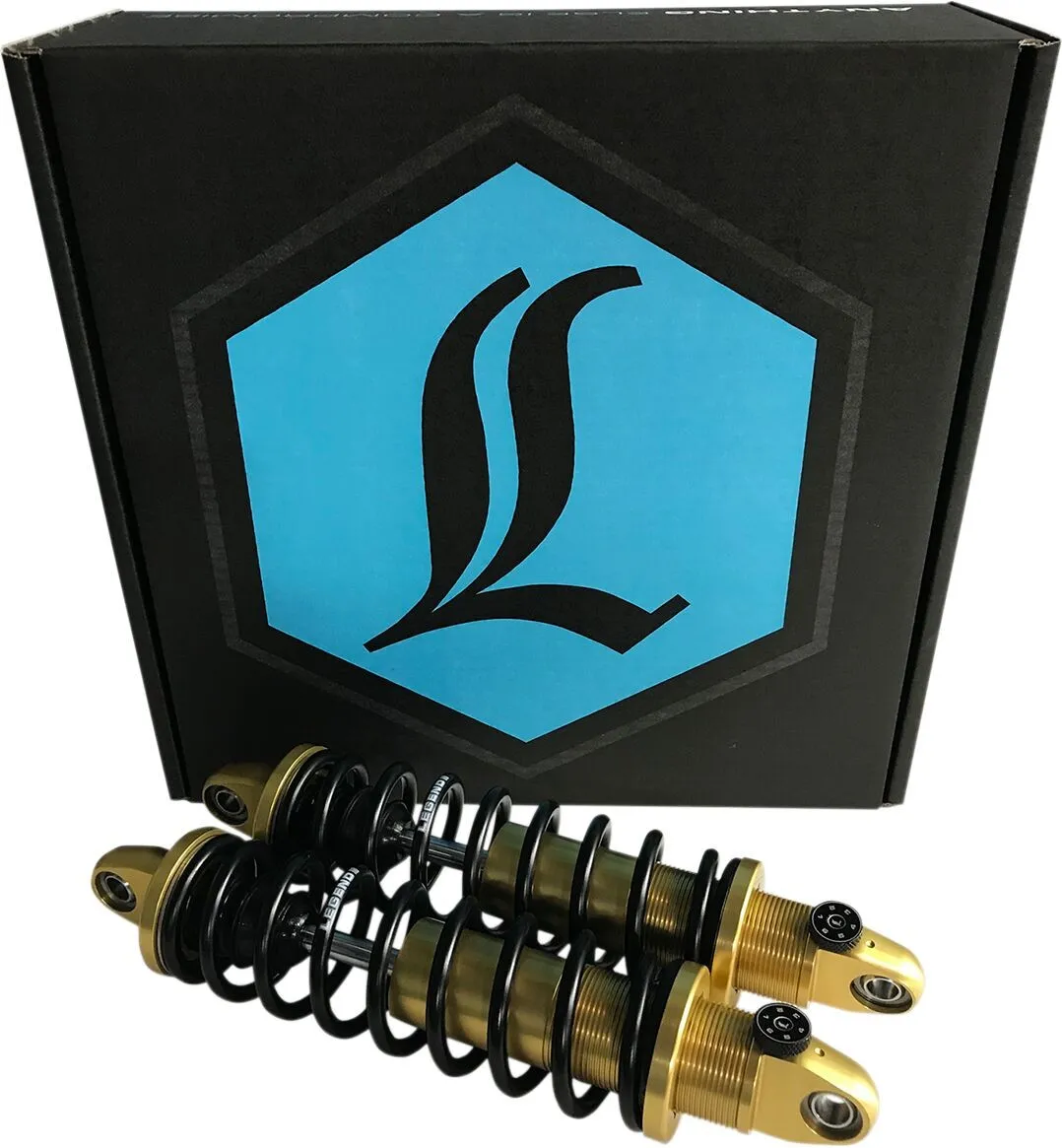

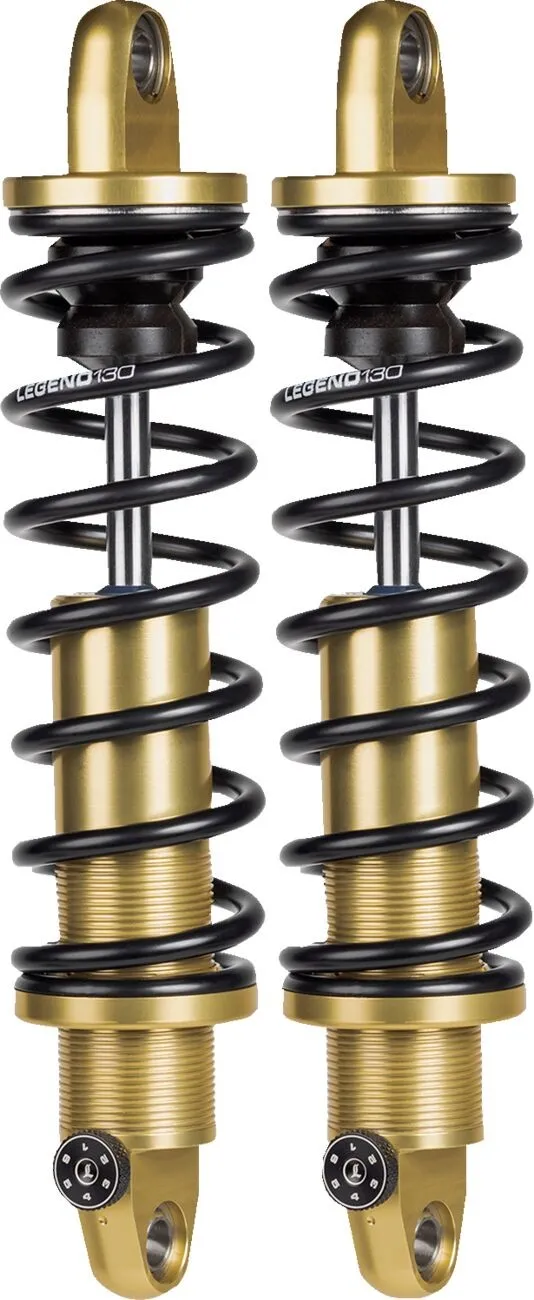

Legend 12 Inch Revo-A Suspension In Gold Finish For Harley Davidson 2004-2020 Sportster Motorcycles (1310-1747)
Contact us
Check to see if this part fits your vehicle.
Instructions
PRODUCT DESCRIPTION:
- Available in Black, Clear Anodized or Gold.
- Legend's touring specific spring rates produce superior ride quality and performance
- REVO coils provide improved plush ride quality, control, and resistance to bottoming-out
- REVO's extended coil length has larger "sweet spot" without increasing overall shock length
- REVO's unique spring rate offers the ability to soften pre-load, reducing ride height and maintaining a smooth ride
- Allows minimal pre-load adjustments when changing between riders' weights or loads
- Adjusts by hand, no tools needed
- Available in 12", 13" and 14", standard or heavy-duty applications
- Easy installation and alignment, provided by spherical bearings on both top and bottom

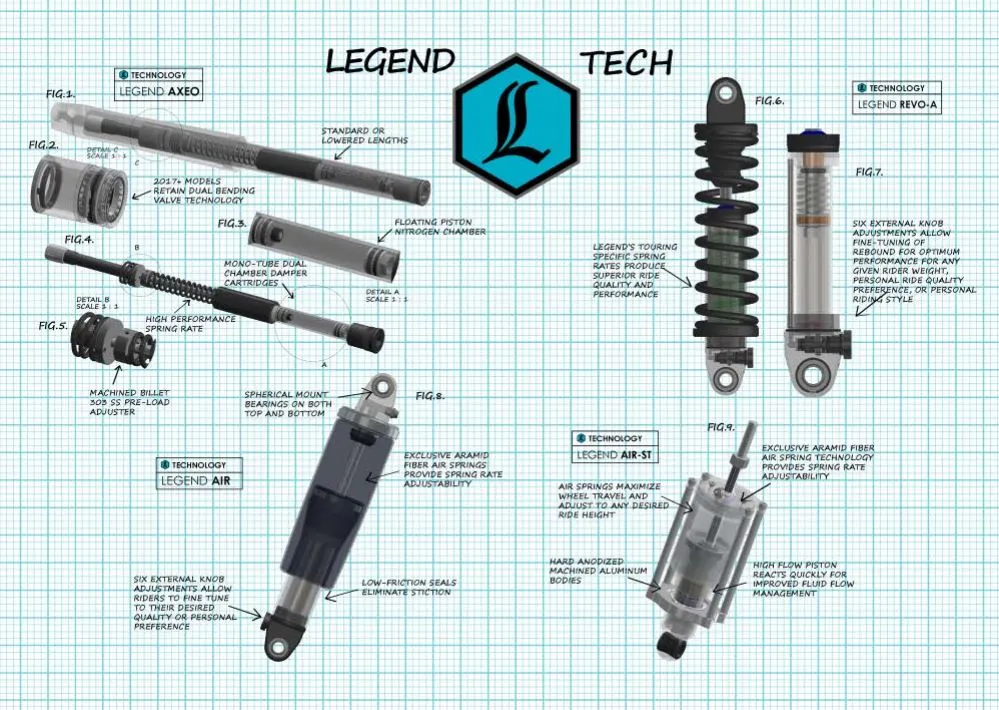

- All the benefits of the new REVO shocks above plus six external knob adjustments allow fine-tuning of rebound
- Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
- Light to heavy riders can fine-tune ride preference
- Aggressive to casual riding styles can tune to desired quality or personal preference
- NOTE: Heavy Duty applications are recommended for 500lb. + rider and passenger total weight.
- NOTE: Heavy Duty not available in clear anodized or gold.
- P65 WARNING: Cancer and Reproductive Harm
- Backed by Lifetime Warranty
- Made by hand in Sturgis, South Dakota, USA
Specifications +
Material: Hard Anodized Machined Aluminum
Adjustment Type: Adjustable Rebound Damping
Base Finish: Anodized
Reservoir Location: Internal
Duty: Standard
Mounting Position: Rear
Type: Coilover Twin-Tube
Color/Finish: Anodized| Gold
Extended Length: 305,00 mm (12,00")
Product Name: Shock Absorber
Damping Method: Deflective Disc
Model: Revo-A
Base Color: Gold
Units: Pair
Part numbers +
Fitment +
HARLEY DAVIDSON
- Sportster - XL 883: 2004-2009
- Sportster 1200 Iron - XL 1200 NS: 2018-2021
- Sportster 50th Anniversary - XL50: 2007
- Sportster Custom - XL 1200 C: 2004-2020
- Sportster Custom - XL 883 C: 2004-2010
- Sportster Forty-Eight - XL 1200 X: 2010-2022
- Sportster Forty-Eight Special - XL 1200 XS: 2018-2022
- Sportster Iron - XL 883 N: 2009-2022
- Sportster Low - XL 1200 L: 2006-2011
- Sportster Nightster - XL 1200 N: 2007-2012
- Sportster Roadster - XL 1200 CX: 2016-2020
- Sportster Roadster - XL 1200 R: 2004-2008
- Sportster Roadster - XL 883 R: 2004-2015
- Sportster Seventy-Two - XL 1200 V: 2012-2016
- Sportster Super Low - XL 1200 T: 2014-2017
- Sportster SuperLow - XL 883 L: 2005-2019
- XR 1200: 2008-2010
- XR 1200 X: 2011-2013
