Legend Suspensions Black 13.6 Inch Revo-A Shock Absorber For Harley Davidson 2017-2023 Tri-Glide Models (1310-2312)
vehicle specific
Contact us
Check to see if this part fits your vehicle.

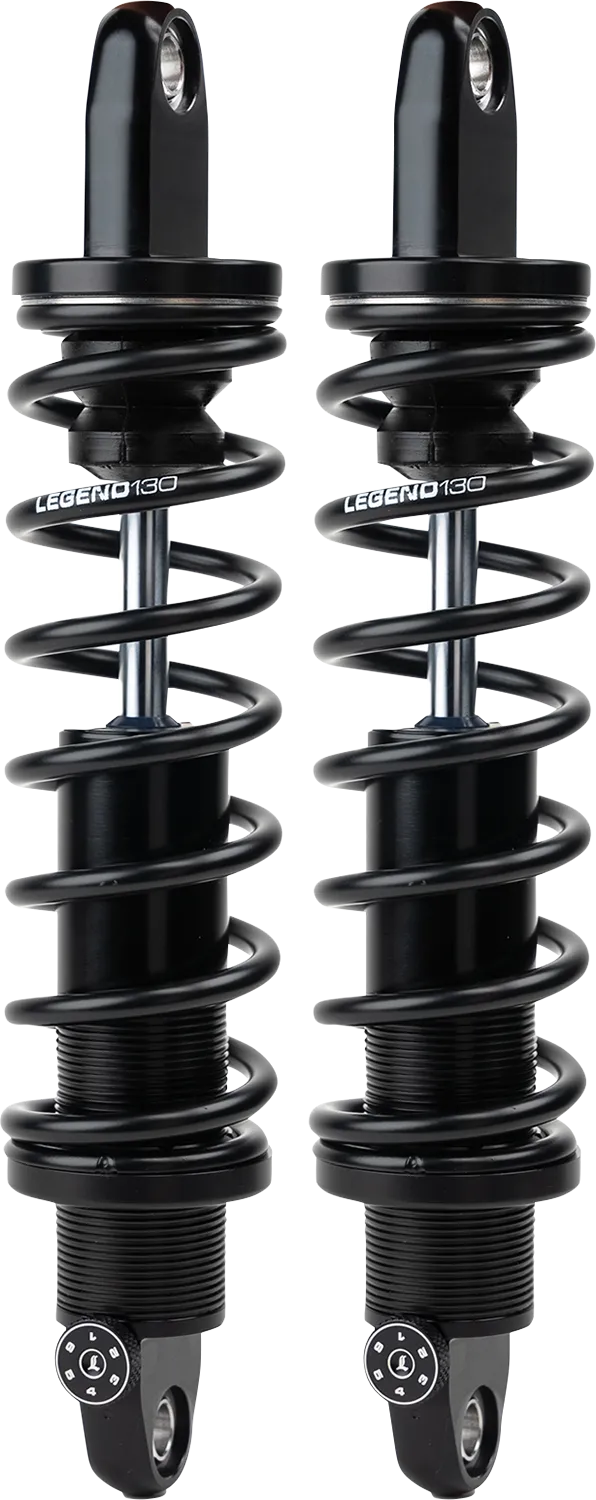

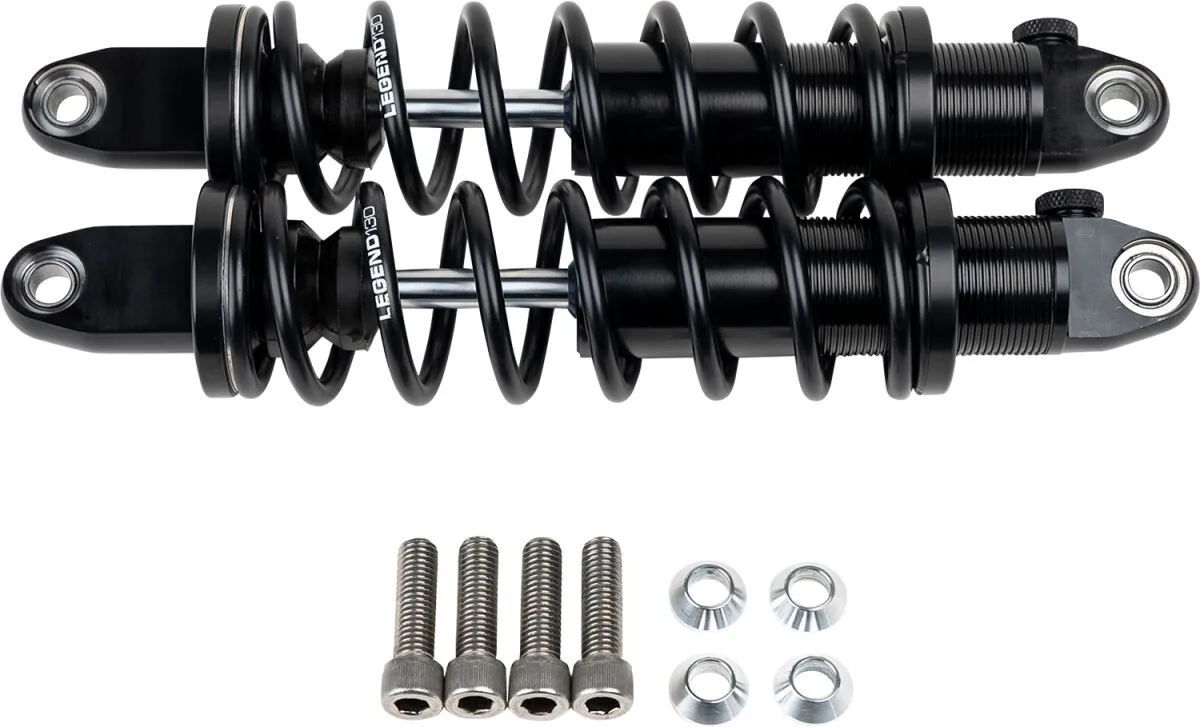

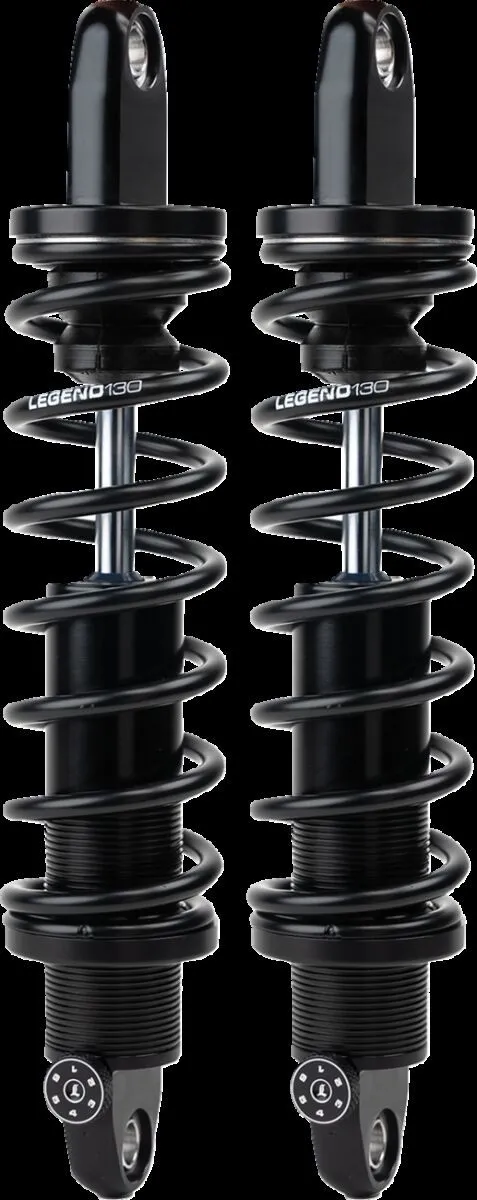

REVO-A Heavy-Duty Tri-Glide Shock
- 13.6″ length maximizes rear ride height on 2017 and newer trikes utilizing OEM shock mount plates
- Eliminates the need for a lift kit
- Levels out trike models that sit low in the rear from the factory
- Reduces dragging and scuffing of mufflers when rolling through drain basins, backing up to curbs, or loading on a trailer
- Easier steering due to less trail in the front end
- Legend’s touring-specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort
- Adjusts by hand, no tools needed
- Trike-specific spring rate
- Black Type III hard coat anodize only
- Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
- High-flow piston improves fluid flow management and allows quick response
- Deflective disc valving self-adjusts to frequency and ensures controlled performance
- Low friction sealing system and sliding bearings for improved performance and feel
- Lifetime Warranty
- Assembled by hand in Sturgis, SD USA
Specifications +
Colour/Finish: Anodized| Black
Extended Length: 346,00 mm (13,625")
Product Name: Shock Absorber
Type: Coilover Twin-Tube
Reservoir Location: Internal
Adjustment Type: Adjustable Rebound Damping
Material: Billet Aluminium
Model: Revo-A
Mounting Position: Rear
Duty: Heavy Duty
Units: Pair
Part numbers +
Fitment +
HARLEY DAVIDSON
- Freewheeler - FLRT: 2017-2024
- Road Glide 3 - FLTRT: 2023-2024
- Tri Glide Ultra Classic - FLHTCUTG: 2017-2024
- Tri Glide Ultra Classic CVO/SE - FLHTCUTGSE: 2020-2022
