  • Ohlins STX46 Shock Absorber In Black With Golden Reservoir For Harley Davidson 2018-2024 Softail Models (HD 517)

Ohlins STX46 Shock Absorber In Black With Golden Reservoir For Harley Davidson 2018-2024 Softail Models (HD 517)

  • Ohlins STX46 Shock Absorber In Black With Golden Reservoir For Harley Davidson 2018-2024 Softail Models (HD 517)vehicle specific
$1,265.76
Wishlist
Check to see if this part fits
your vehicle.

Check for fitment

Or select by make, year, model



×

Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll respond via email with a unique discount code.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

Send us your email and we'll let you know when its available.

Instructions

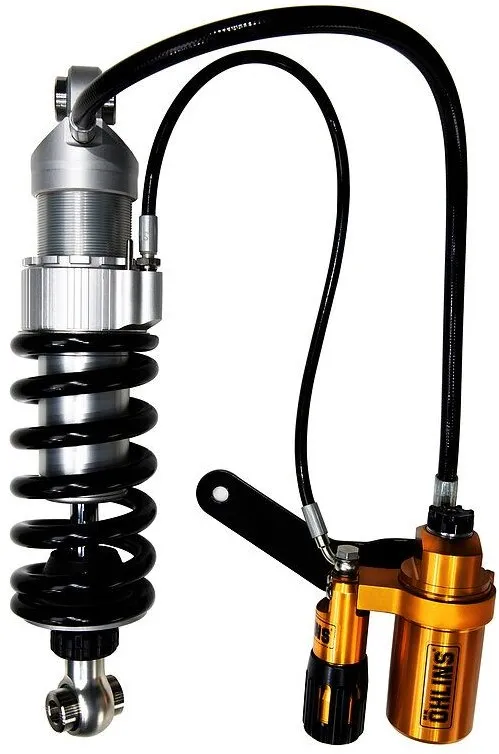

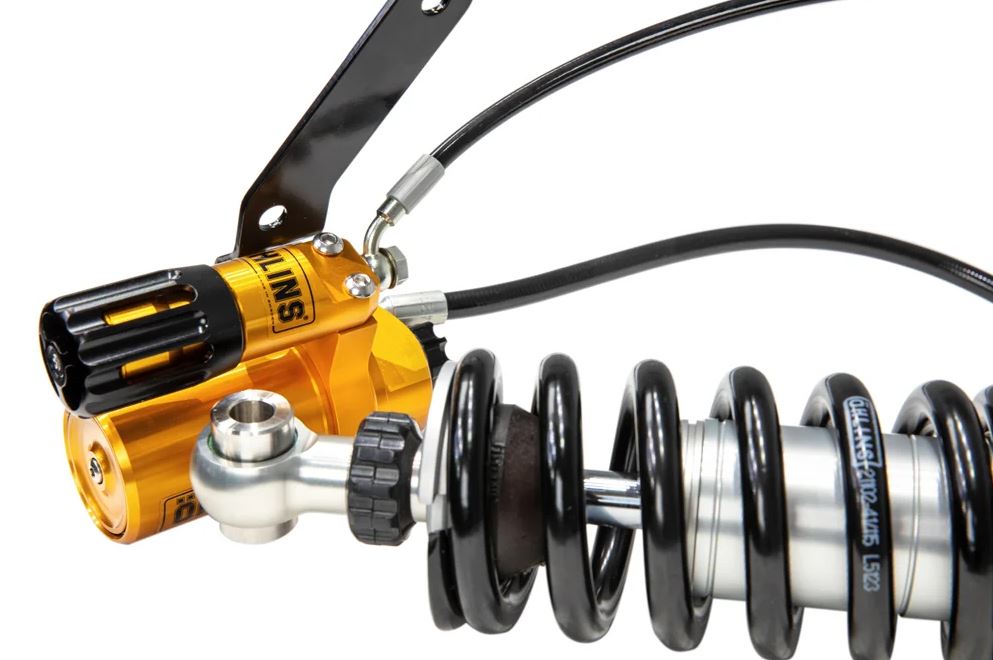

Öhlins' STX46 American V-Twin shocks are made to improve the comfort and performance of your Harley-Davidson. Available in a variety of configurations, these shocks are specifically designed and tested to suit your bike model.

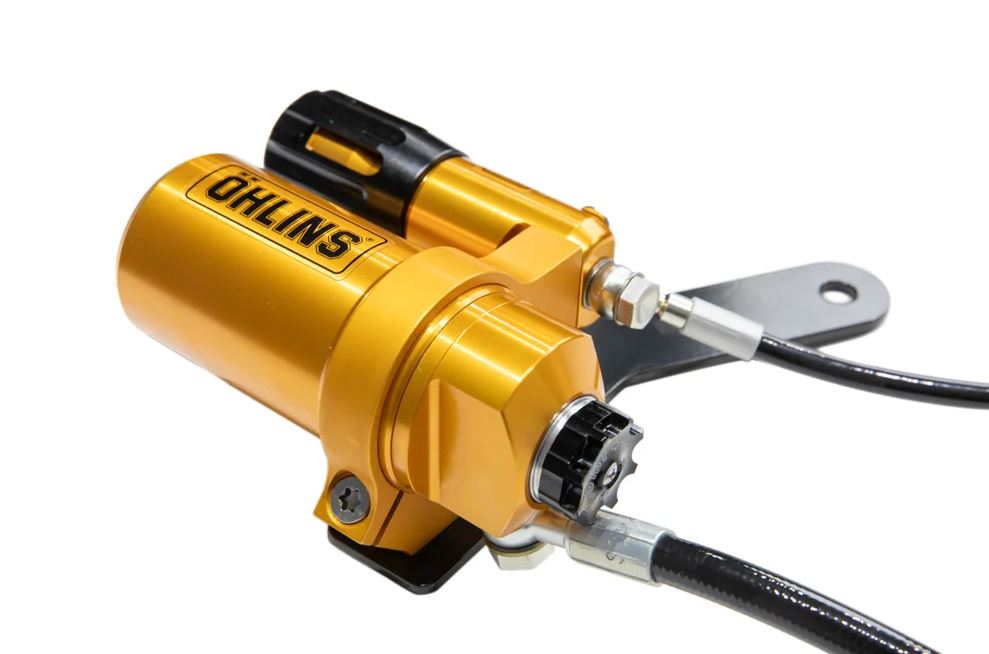

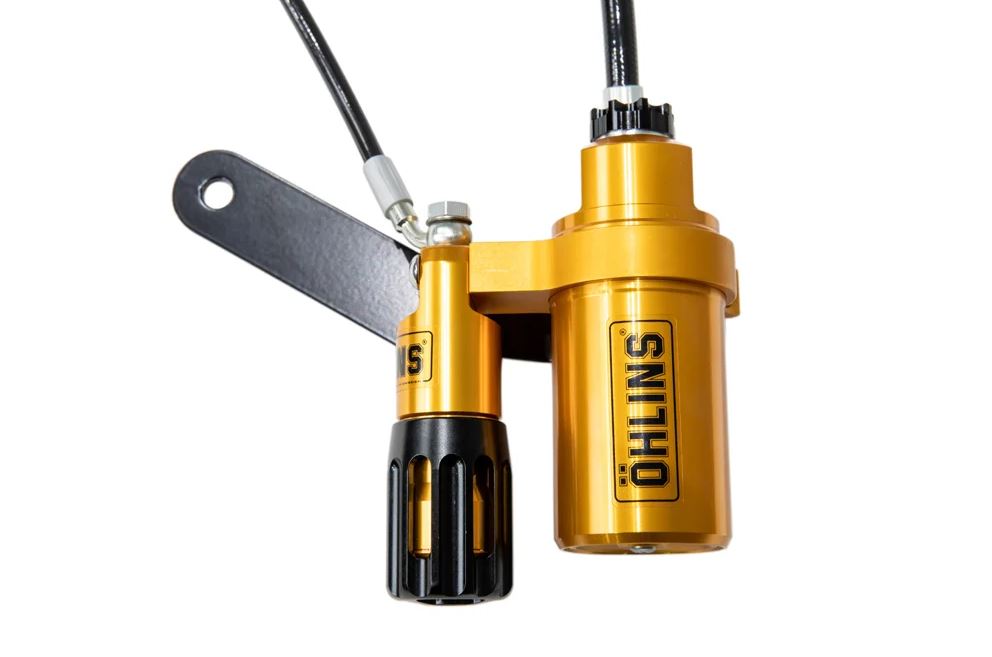

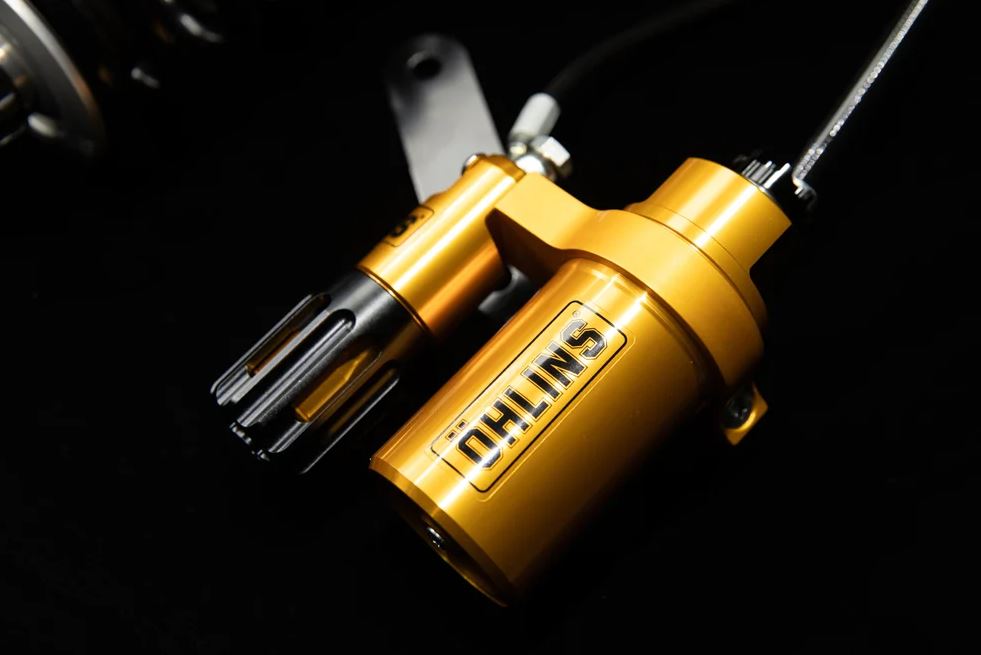

The newest addition to the STX46 Softail family is the fully adjustable STX46 American V-Twin rear shock, designed for Harley-Davidson Softail models (2018-). It features a monotube, high gas-pressurized design, with the reservoir and preload adjuster side-mounted just below the rider's seat on the right side. A Harley-Davidson side cover (part no. 54000321) is required if one is not already installed, as it provides better clearance for the hoses. A black lid is included to cover the hole in this cover where the OE preload adjuster is located.

With fully adjustable damping, you can tailor the rebound and compression damping behavior of the shock to match your riding style. The side-mounted hydraulic preload adjuster allows for easy spring preload adjustments to compensate for changes in rider and cargo weight—no extra tools required.

  • STX 46 Shock Absorber
  • Single tube
  • High pressure gas type of shock absorber with hose mounted external reservoir.
  • Piston diameter: 46 mm

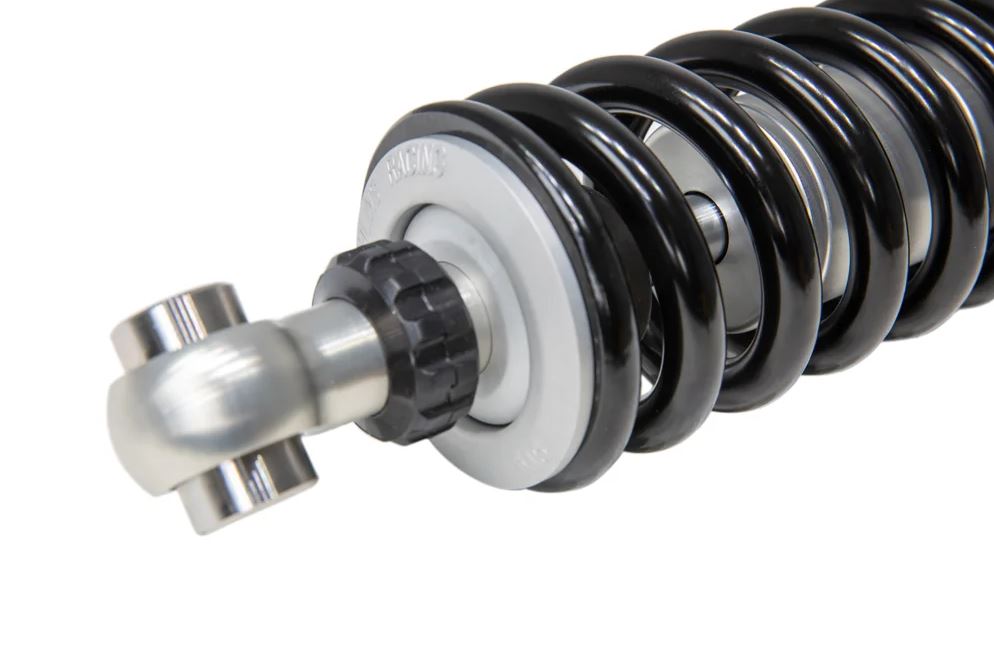

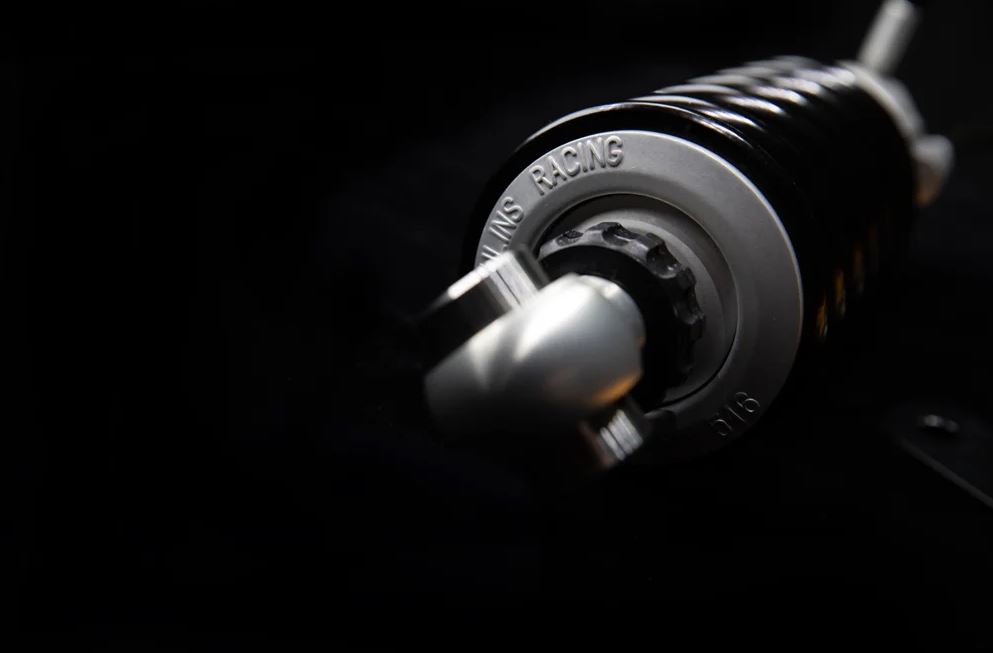

  • Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye

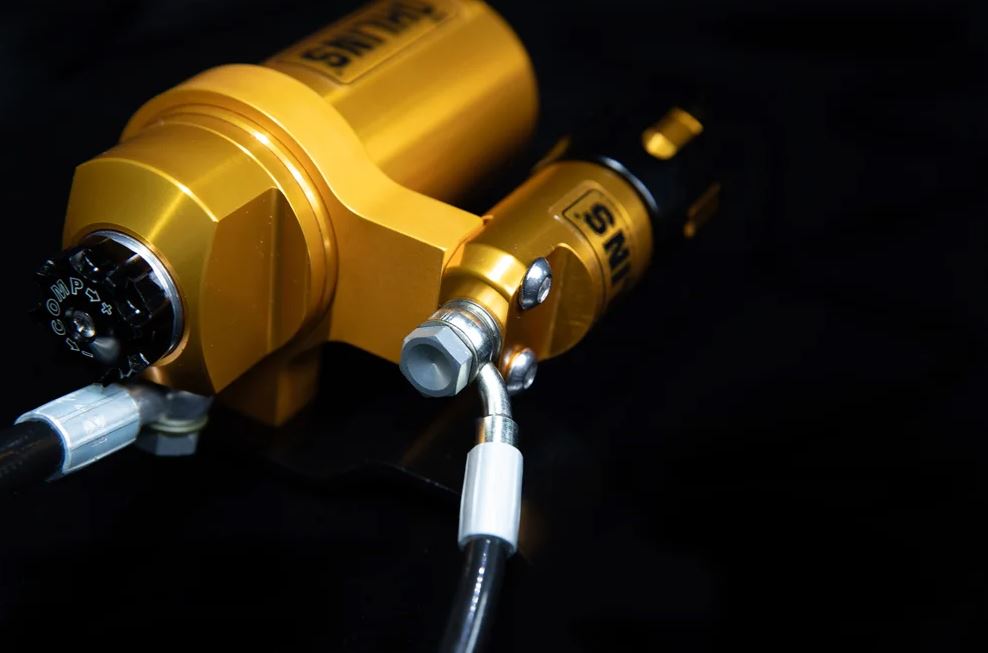

  • Adjustable compression damping. Adjuster wheel or slot on the reservoir.

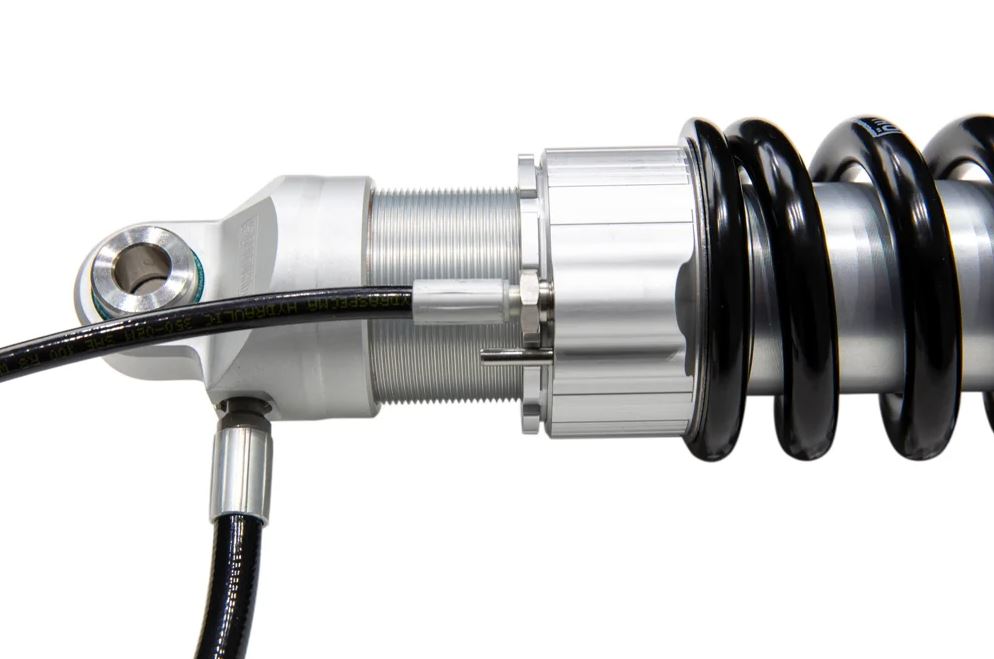

  • Hose mounted hydraulic spring preload adjuster.
  • Stroke (56.5 mm), Length (341 mm or 13.5")

Specifications +

Type: Shock
Units: Each
Research Value: Level 2
Length: 341,50 mm (13,44")
Product Name: Suspension Kit
Mounting Position: Rear
Style: Fully Adjustable
Color/Finish: Black| Silver

Part numbers +

  • 13102521
  • 1310-2521
  • HD 517
  • 721085

Fitment +

    HARLEY DAVIDSON
  • Deadwood FLHD: 2026
  • Softail Breakout 107 - FXBR: 2018-2020
  • Softail Breakout 114 - FXBRS: 2018-2022
  • Softail Breakout 117 - FXBR: 2023-2024
  • Softail Fat Boy 107 - FLFB: 2018-2020
  • Softail Fat Boy 114 - FLFBS: 2018-2024
  • Softail Low Rider S 114 - FXLRS: 2020-2021
  • Softail Low Rider S 117 - FXLRS: 2022-2024
  • Softail Low Rider ST 117 - FXLRST: 2022-2024
  • Softail Street Bob 107 - FXBB: 2018-2020
  • Softail Street Bob 114 - FXBBS: 2021-2024
  • Super Glide - FXD 117: 2026
