Zippers Thundermax with AutoTune - Electronic Fuel Injection System for 2010-2013 Sportsters, 2008-2010 Softail Rocker, 2004-2011 Dyna and 2009 CVO Springer Models (309-485)

  • Zippers Thundermax with AutoTune - Electronic Fuel Injection System for 2010-2013 Sportsters, 2008-2010 Softail Rocker, 2004-2011 Dyna and 2009 CVO Springer Models (309-485)

Out of stock - Click for more information


In Stock – Item is in stock

Usually ships in 3-6 business days – Item will be shipped out by ourselves in 3-6 business days subject to availability with our suppliers.

Usually ships in 5-10 business days – Item will be shipped out by ourselves in 5-10 business days subject to availability with our suppliers.

Made To Order – Item will be shipped out as soon as it has been manufactured and arrives in our warehouse. For a more accurate lead time, we would recommend that you enquire before placing an order.

Out of Stock – Item is currently out of stock. Availability will update when item becomes available again.

- Email me when available

Stock notification

Submit your email address and we will email you when this item is either in stock or can be sourced from one of our suppliers.

Email me when available


Free Shipping to USA (48 States)

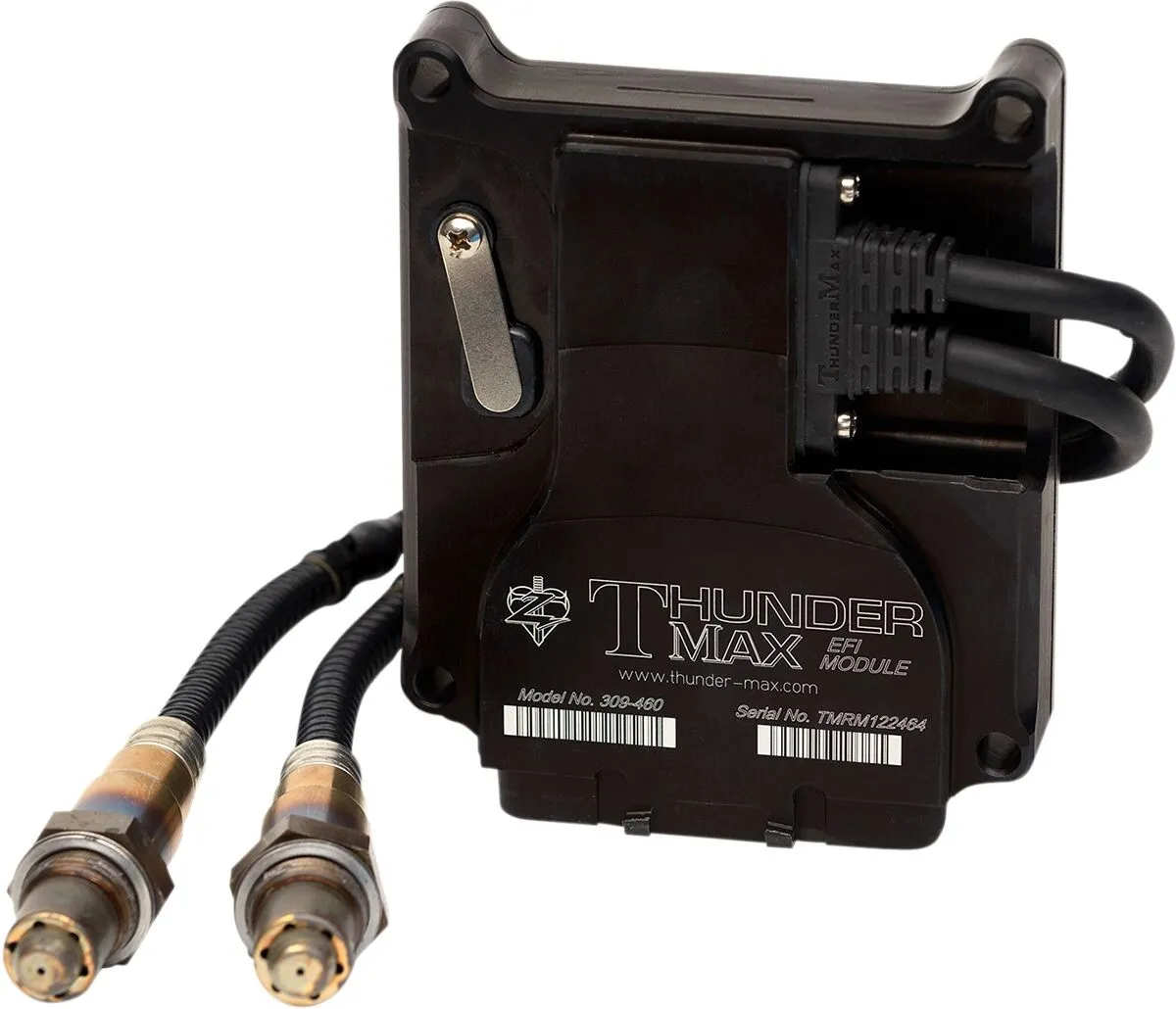

Does Your EFI Bike Pop? Spit? Backfire? Start Hard? Run Hot? Crappy Fuel Mileage? Would you like to have full control of your EFI system, freedom to make major or minor adjustments without a master’s degree in electronics and computers? Here is a simple solution - ThunderMax with AutoTune! The ThunderMax is a completely new product that replaces the factory Electronic Control Module (ECM), not an add-on box or signal modifier. The ThunderMax is purpose-built to deliver uncompromising performance but you don’t have to be a rocket scientist to program it or make adjustments.

Just how easy is it? In most applications, installation is a straightforward replacement of the factory module and oxygen sensors. The ThunderMax software contains hundreds of base maps that cover over 80% of popular factory and aftermarket combinations, dyno-developed on real motorcycles. Choosing a map is a quick and easy process thanks to the ThunderMax software’s sorting filters; loading a map takes less than a minute. After that, you’re ready to start the motorcycle. Once running, let the bike warm up at idle to operating temperature while the software automatically dials in idle and warm-up settings for that particular engine and you’re ready to ride! During your ride, every time you ride, the ThunderMax AutoTune module analyzes the air/fuel ratio read by the wide-band oxygen sensors at warp speed after every cylinder fire and makes any necessary adjustments to the injector pulse width to achieve the desired air/fuel ratio while compensating for variations in engine components such as injectors, fuel pressure or exhaust flow.That’s it! All you have to do is ride.

But as simple as we’ve made the ThunderMax to install and use, don’t be fooled into thinking that this not one of the most sophisticated systems you can buy for your Harley®. Using the supplied SmartLink software and communication cable, you can adjust or monitor virtually every parameter of the system:

  • Closed Loop AFR Targets
  • Idle Speed
  • Rev Limit
  • Igniting Timing
  • Speedometer Calibration
  • Decel Pop Control
  • Read Diagnostic Codes
  • Running Statistics / Logs
  • Accel Pump Simulation
  • Start Fuel Pulse
  • Engine Temp Alarm
  • Injector Size Compensation
  • Live Engine Tuning
  • Live Monitoring
  • Live Recording
  • Digital Tech Compatible
  • Supercharger Compatible
  • Warm-up Settings
  • New – Map Analyzer feature assesses AutoTuned map adjustments in a snapshot to simplify map analysis
  • New – AutoMap Creator feature speeds AutoTune mapping and improves the tune of any engine and exhaust pipe combination
  • And Many More!

ThunderMax makes more sense in the long run as the system can grow and change as your engine does - just load a new map! ThunderMax software, firmware and maps updates are free and accessible 24/7 with an Internet connection so you’re only a mouse-click away from the latest available data. The ThunderMax is designed and manufactured right here in the USA and backed by a 3-year warranty!

Specifications +

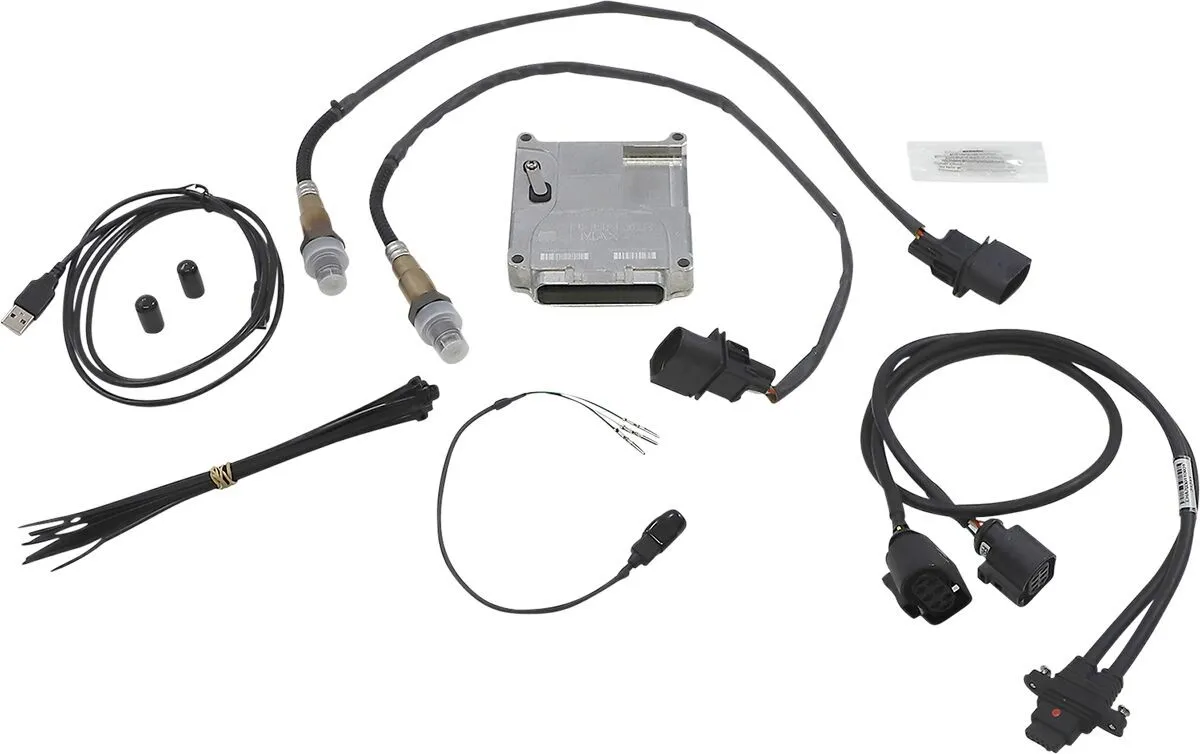

Feature: Includes Two Oxygen Sensors
Oxygen Loop Control: Closed Loop
Base Color: Black
Programming: Autotune| Downloadable Maps
Physical Connection: Plug-In (OEM Style Connectors)
Model: ThunderMax
Product Name: Electronic Control Module
Units: Kit
Type: Air/Fuel Ratio
Oxygen Sensor Band: Wide-Band

Fitment +

This product fits:

  • HARLEY DAVIDSON FLSTN 1584 Softail Deluxe - ALL: 2009
  • HARLEY DAVIDSON FXCW 1584 Rocker - ALL: 2008-2009
  • HARLEY DAVIDSON FXCWC 1584 Rocker C - ALL: 2008-2010
  • HARLEY DAVIDSON FXD 1450 Dyna Super Glide - AMERICA: 2004-2005
  • HARLEY DAVIDSON FXD 1584 Dyna Super Glide - AMERICA: 2007-2010
  • HARLEY DAVIDSON FXDWG 1450 Dyna Wide Glide - AMERICA: 2004-2005
  • HARLEY DAVIDSON FXDWG 1584 Dyna Wide Glide - ALL: 2007-2011
  • HARLEY DAVIDSON FXDWG 1584 Dyna Wide Glide 105th Anniversary - AMERICA: 2008
  • HARLEY DAVIDSON XL 1200 C Sportster Custom - ALL: 2010-2013
  • HARLEY DAVIDSON XL 1200 C Sportster Custom 110th Anniversary - ALL: 2013
  • HARLEY DAVIDSON XL 1200 L Low - ALL: 2010-2011
  • HARLEY DAVIDSON XL 1200 N Nightster - ALL: 2010-2012
  • HARLEY DAVIDSON XL 1200 V Seventy-Two - ALL: 2012-2013
  • HARLEY DAVIDSON XL 1200 X Forty-Eight - ALL: 2010-2013
  • HARLEY DAVIDSON XR 1200 - ALL: 2009-2010
  • HARLEY DAVIDSON XR 1200 X - ALL: 2011-2012
