Zodiac Radium 250 Basic Swingarm Kit (396050)

  • Zodiac Radium 250 Basic Swingarm Kit (396050)
  • zodiac image
$2,004.03
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

EU stock Estimated shipping date between 3 Apr and 8 Apr.

Usually ships in 2-5 business days

All orders are shipped out of our UK premises. Estimated shipping date between 3 Apr and 8 Apr.

×

Overview of the product

The Zodiac Radium swing arm kit is one of the easiest wide tire conversion kits for Softail. These kits bolt into stock Softail frames on 2008-2017 models and allow the installation of a 250 wide rear tire on a 8.50" wide wheel.

These very complete kits include all parts needed to offset the primary and leave the engine and transmission in the stock position.

Only the complete primary is mounted offset by means of an included engine to primary spacer, a spacer behind the alternator rotor and an offset drive pulley.

The only "modification" that is to be made to the stock frame is cutting off the existing fender struts and replacing them with the included chrome billet aluminium ones.

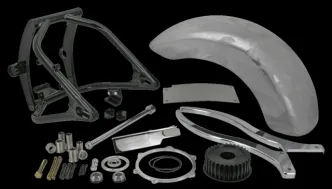

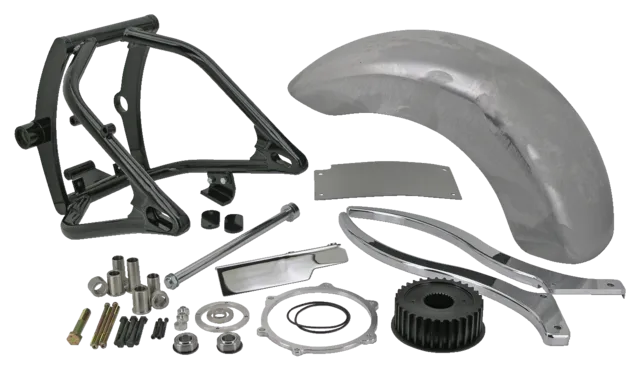

Kits include a black swingarm, chrome 3/4" (19.05mm) diameter rear axle, black axle covers, stainless steel splash guard, chrome belt guard, swingarm pivot bearings, raw steel rear fender, billet aluminium fender struts, billet aluminium primary spacers, offset drive pulley and stainless steel spacers for the compensator sprocket and clutch, all required hardware, gaskets and seals.

Kits are designed for use with the stock final drive belt. Because of the very wide choice in wheel designs, the wheel and tire must be ordered separately.

NOTE: Picture for reference only!
